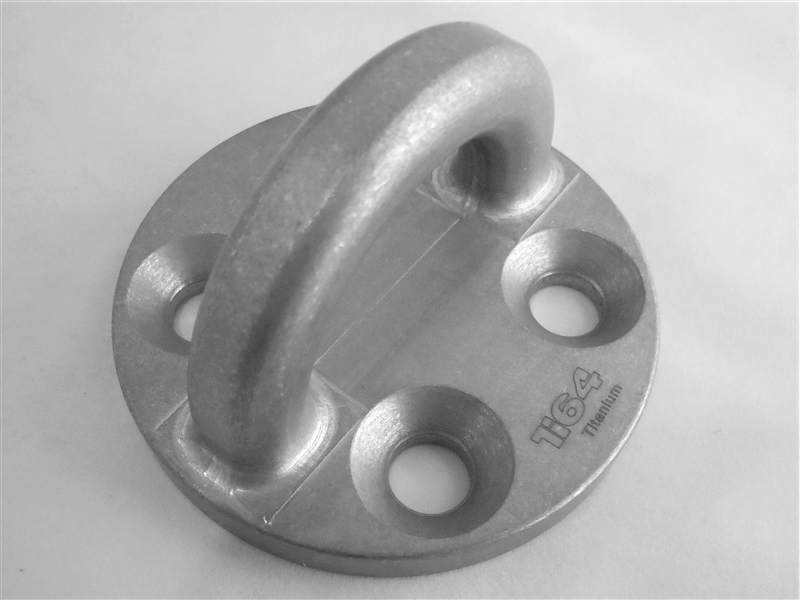

76mm Titanium Pad Eye, Matte Finish
76mm Titanium Pad Eye, Matte Finish

Our Price: $564.89 ea


Availability: Usually Ships in 24 to 48 Hours
Product Code: 6529
Qty:

Description

High Strength Grade 5 (Ti 6Al-4V) 76mm Pad Eye.

Working Load, Angle 1 (vertical in plane): 16,000 lbs.
Working Load, Angle 2: (45 degrees, in plane): 16,000 lbs.
Weight: Approx. 6.5 oz.
Fastening: M10 Countersunk Screw
Bolt Pattern: 1.563" (39.70mm) x 1.312" (33.32mm)
