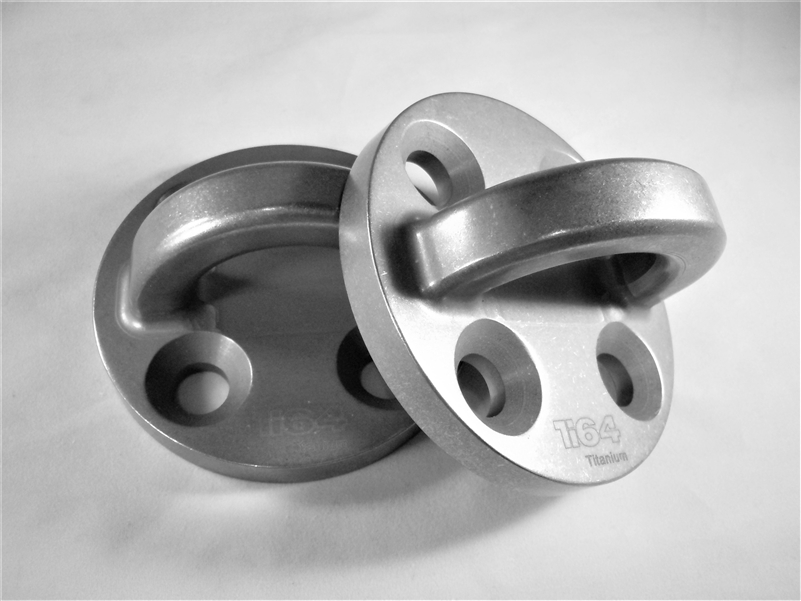

95mm Titanium Pad Eye, Matte Finish
95mm Titanium Pad Eye, Matte Finish

Our Price: $647.49 ea


Availability: Usually Ships in 24 to 48 Hours
Product Code: 6528
Qty:

Description

High Strength Grade 5 (Ti 6Al-4V) 95mm Pad Eye.

Working Load, Angle 1 (vertical in plane): 25,000 lbs.
Working Load, Angle 2: (45 degrees, in plane): 20,000 lbs.
Weight: Approx. 12.5 oz.
Fastening: M12 Countersunk Screw, 1.25 thread pitch recommended for maximum strength
Bolt Pattern: 1.875" (47.63mm) x 1.750" (44.45mm)
