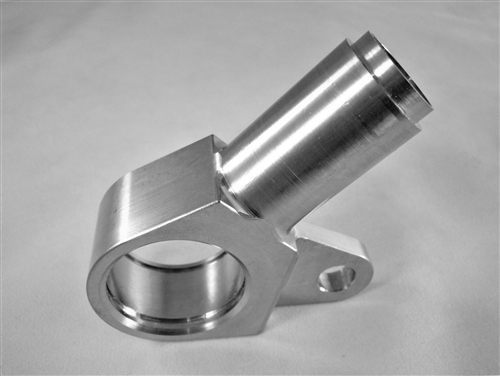

A-Arm Joint, 5/8" Bearing 1/4" Tab (Weldable End)
A-Arm Joint, 5/8" Bearing 1/4" Tab (Weldable End)

Our Price: $412.69 ea


Availability: Build to order, 3-5 weeks lead time
Product Code: 3749
Qty:

Description

We call this a Charlotte Joint because we were sitting in the Charlotte airport when we drafted the part. It is made for use in upper A-Arm suspensions. It is made to accept a 5/8" PWB bearing, 2 snap rings hold the bearing in place. The 1/4" thick Tab has a 3/8" hole. The weldable end accepts 7/8"OD 0.065" wall tubing. We stock the tube and can weld to any length or can weld a threaded end directly to the joint.  Bearing and snap rings not included.
