Ti64 grade 5 titanium King Midget ONS Chassis Kit

Home > Sprint/Midget/Micro > Chassis Kits and Misc. Suspension > Midget Chassis & Suspension Kits >

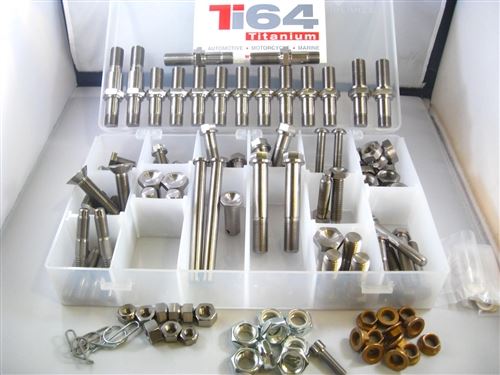

King Midget ONS Chassis Kit

Our Price: $883.29 ea

Availability: In Stock, Usually ships in 24 Hours
Product Code: 203

Qty:

The following items are included with this product:

1 of 1/4"-20 Hex Nylon Insert Lock Nut
6 of Torque Tube Stud, 3/8" 16-24 x 1.82"
2 of 3/8"-16 x 1-1/2" Hex Head Bolt
4 of Drag Link / Tie Rod 1/2"-20 ONS, 2.525" Overall
8 of 1/2"-20 Steel Nylon Insert Lock Nut, Half Height
2 of 5/16"-24 x 1" Hex Head Bolt
2 of 3/8"-24 x 3/4" Hex Head Bolt
4 of 1/2"-20 x 1-1/4" Hex Head Bolt
6 of 5/16"-24 Hex Nylon Insert Lock Nut
12 of 3/8"-24 Fine Thread, Jet Nut
1 of 1/4"-20 x 2" Parallel Socket Head Screw
1 of 5/16"-24 x 2-1/2" Parallel Socket Head Screw
4 of 3/8"-24 x 1" Ultra-Light Hex-Flange Bolt
4 of 7/16"-20 x 1-1/2" Ultra-Light Hex-Flange Bolt
4 of 1/2"-20 x 1-1/2" Ultra-Light Hex-Flange Bolt
2 of 1/2"-20 x 2-3/4" Ultra-Light Hex-Flange Bolt
2 of 3/8" x 3.75" Clevis Pin, 3.5" Effective Length
1 of 1/2" x 1.3" Clevis Pin, 1.05" Effective Length
6 of Firewall Casting Stud, 3/8"-16-24 x 1.82" with Bullet Nose
2 of Lower Rear Shock Mount 1/2"-20 ONS, 1.1" chassis-side
9 of Shock Mount 1/2"-20 ONS, 7/8" Thread Into Chassis
17 of 1/2"-20 Hex Nylon Insert Lock Nut , 1/2 Height
2 of 7/16"-20 x 1-3/4" Countersunk Socket Screw
1 of 5/16"-24 x 1-3/4" Button-Head Socket Screw
2 of 5/16"-24 x 2" Button-Head Socket Screw
1 of 1/2" Rue Clip
2 of 3/8" Rue Clip
4 of 7/16" AN Thin Washer, Steel
14 of 3/8" AN Thin Washer, Steel
6 of 5/16" AN Thin Washer, Steel
2 of 1/4" AN Thin Washer, Steel
4 of 1/2"-20 x 1-3/8" Hex Head Bolt
3 of 1/2"-20 x 3/4" Countersunk Socket Screw, Reduced Head
3 of 3/8"-24 Hex Nylon Insert Lock Nut, 1/2 Height
4 of 3/8"-24 x 1-3/4" Hex Head Bolt
1 of 3/8"-24 x 2" Hex Head Bolt
2 of Stop Bolt, 3/8"-16 x 1-3/4"
1 of Small Chassis Kit Box, Tuff Tainer 4007
2 of 3/8"-16 UNC Course Thread Ti Hex Jam Nut

Description

King Midget Chassis ONS Complete Chassis Kit

Item	Application	Part Description	Ti64 Part #	Qty
1	Shock Pins	Screw in ONS	5114	5
		Rear lower arm ONS	5110	2
		LR Upper mount 1/2"-20 x 1 3/8" hex head	6022	1
		1/2"-20 half height Nylock	5127	10
2	Radius Rods/ Pan hard	Chassis ONS	5114	4
		LR,Birdcage,Pan1/2"-20 x 1 1/2" Flange Hex	4997	4
		Axle 1/2"-20 x 1 3/8"	6022	3
		1/2"-20 half height Nylock	5127	7
3	Bell Housing and Torque Tube	3/8" x 1.6" stud kit w/ jet nuts	105	1
4	Jacobs Ladder	Clevis pin kit	133	1
5	Front End	Steering arms 7/16"-20 x 1 1/2" Flange hex	4982	4
		Steer arm 7/16"-20 x 13/4 counter sunk	5146	2
		Tie rod/ Drag link ONS kit	111	1
		Caliper mount 3/8"-24 x 1" Flange hex	4965	2
		Rotor mount 1/2"-20 x 3/4" counter sunk	6038	3
6	Engine Plate	1/2"-20 x 1 1/4" hex head	1344	4
7	Steering	1/2" box mount 5/16"-24 x 1"	1294	2
		Upper mount 5/16"-24 x 2" BHCS	5253	2
		Box pinch clamp 3/8"-24 x 1" flange hex	4965	2
		Pitman Pinch 3/8"-24 x 2"	6076	1
		5/16"-24 Ti nylock	1400	4
		3/8"-24 Ti nylock	6041	1
8	Brakes & Pedals	Brake pedal pivot 5/16"-24 x 2 1/2" SHCS	4774	1
		Master Cyl-pedal 5/16"-24 x 1 3/4" BHCS	5251	1
		Master cyl- chassis 3/8"-24 x 3/4" Hex head	1308	2
		Rear Caliper 3/8"-16 x 1 1/2"	1108	2
		1/4"-20 x 2", Socket Head Screw	4156	1
		5/16"-24 Ti nylock	1400	2
		/8"-24 Ti nylock	6041	2
		1/4"-20 Coarse Thread, Hex Lock Nut	1048	1
9	Torsion Arms/ Stops	Arm/Stop Pinch Bolt 3/8"-24 x 1 3/4" Hex head	6069	4
		Stop Adjuster 3/8"-16 x 1 3/4 Adjuster	6098	2
		3/8"-16 Hex Nut	1063	2
10	Bircage	Torsion arm 1/2"-20 x 2 3/4" Flange Hex	5003	2
11		Firewall Casting Stud 3/8" x 1.82"	5106	6
		3/8"-16 Jet Nuts	1544	6
12	Washers	1/4"	6005	2
		5/16"	6004	6
		3/8"	6002	14
		7/16"	6001	4
